K3MSB

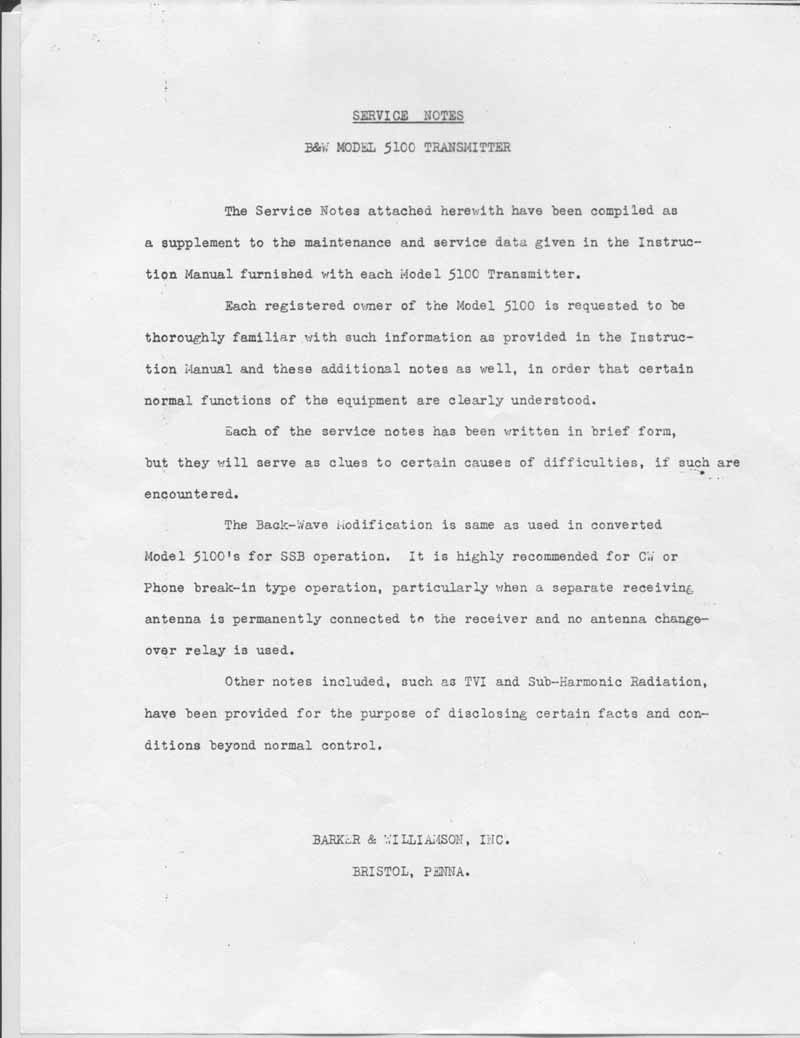

B&W 5100 Service Notes

Addendum / Errata Notes

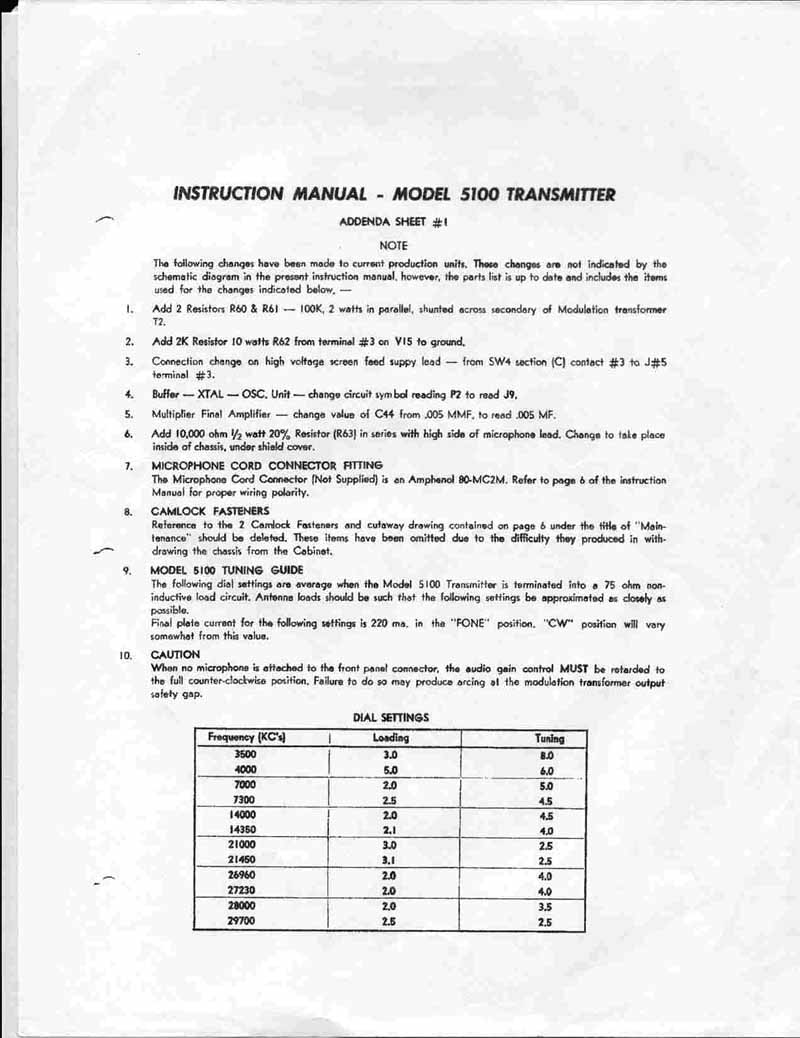

Addendum Sheet #1

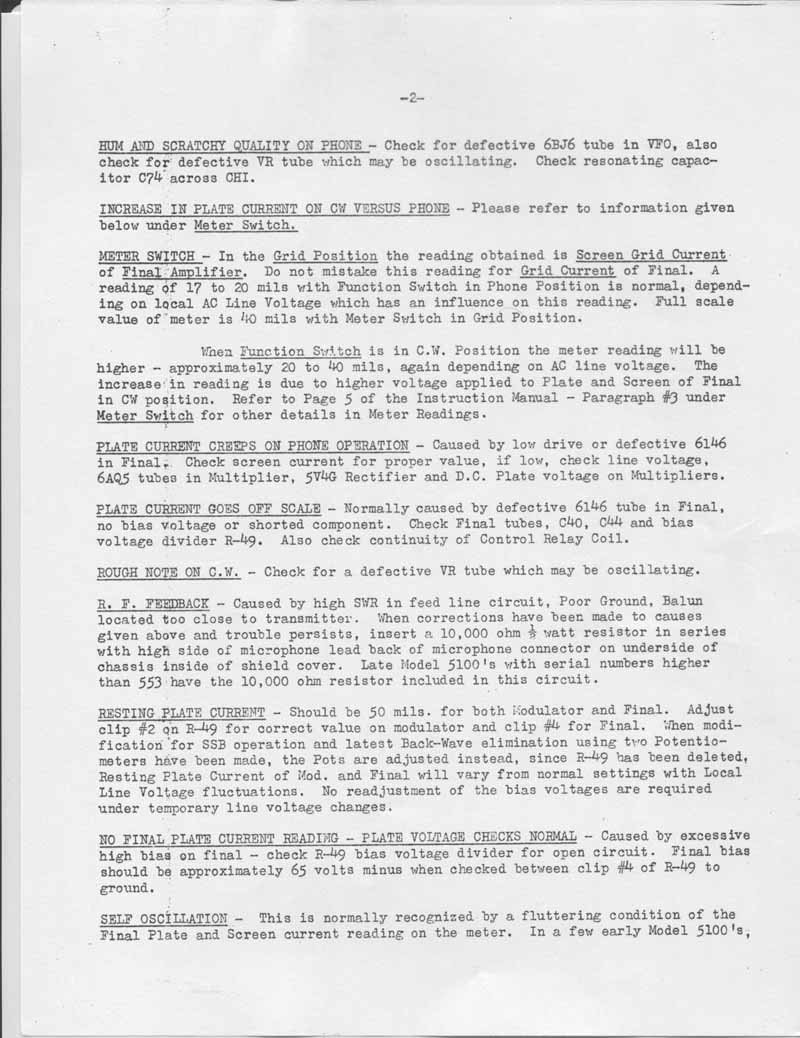

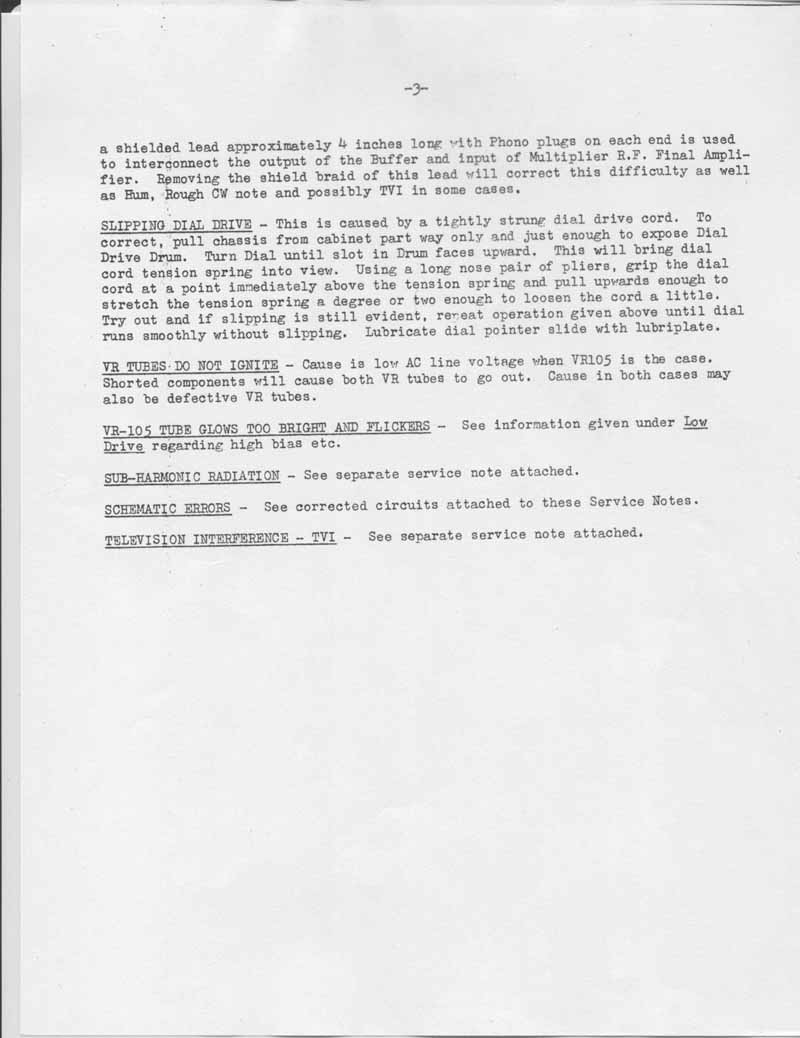

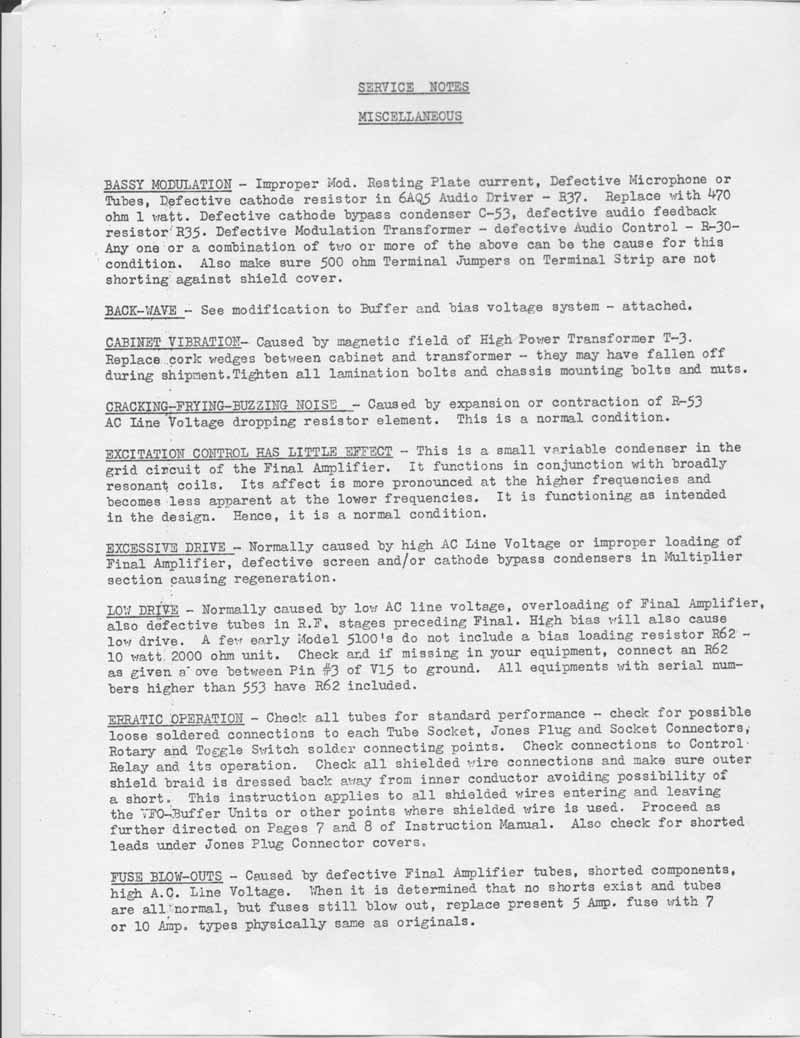

Miscellaneous Service Notes

Intro Page | Page 1 | Page 2 | Page 3

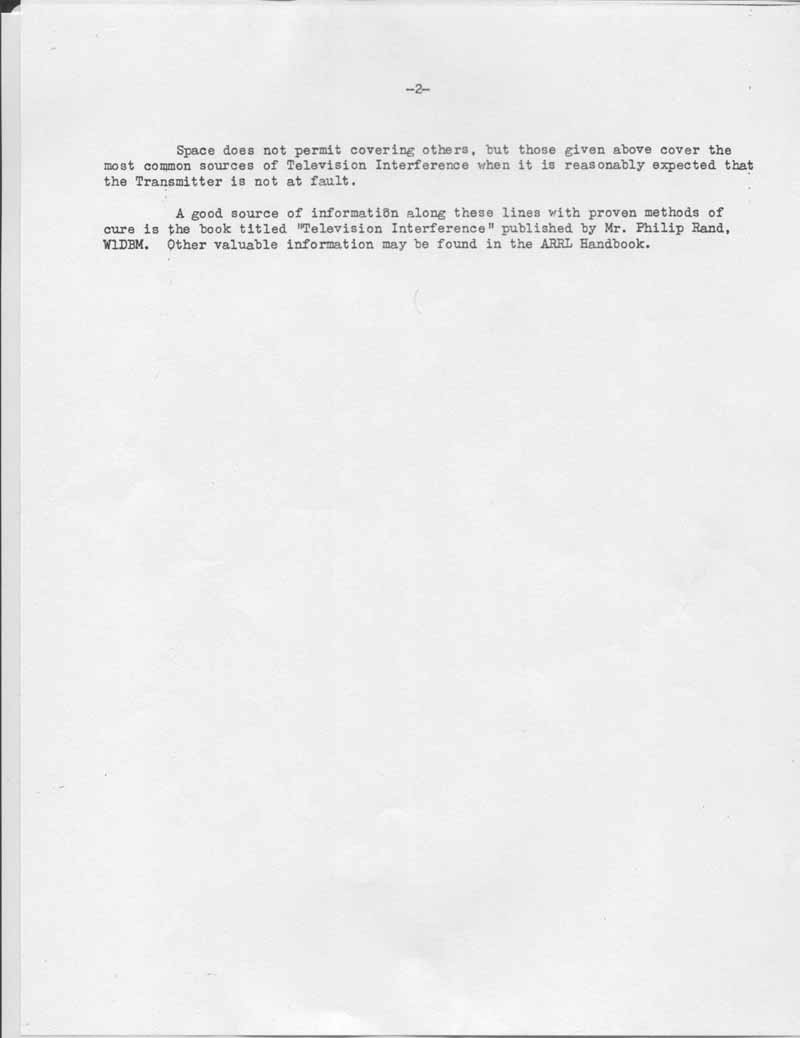

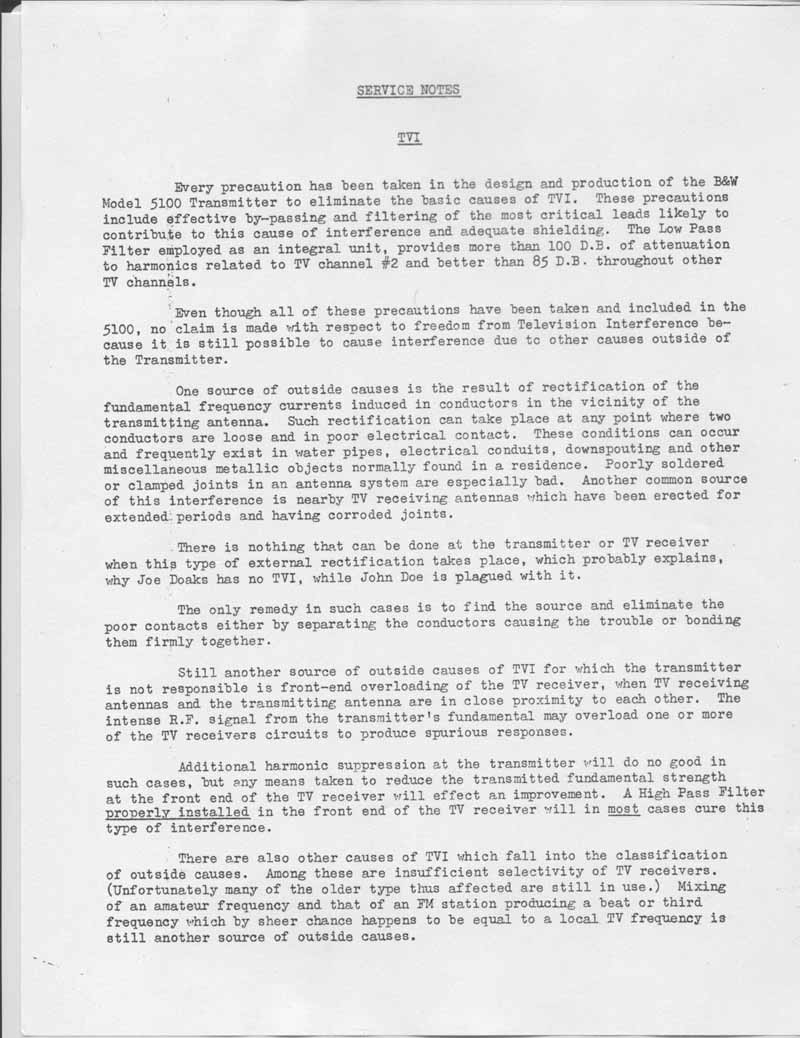

Service Notes to Reduce TVI

Page 1 | Page 2

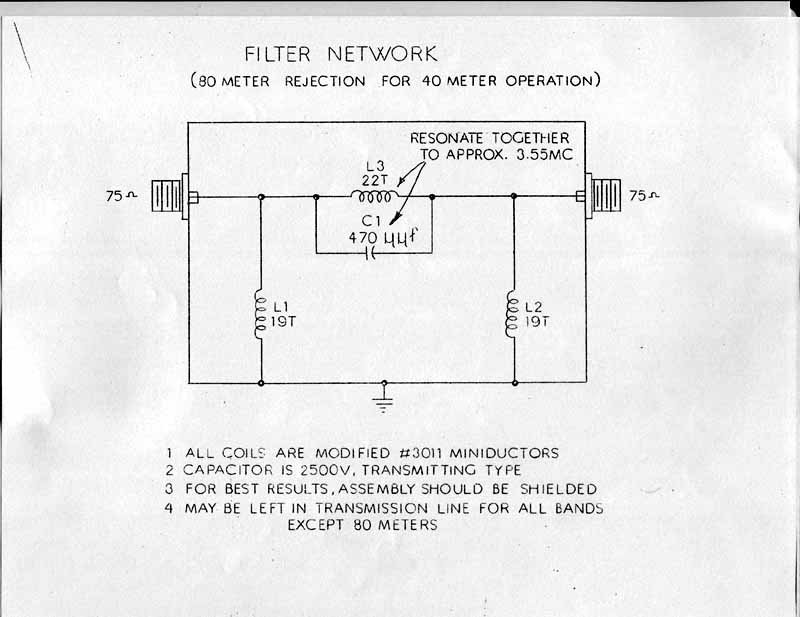

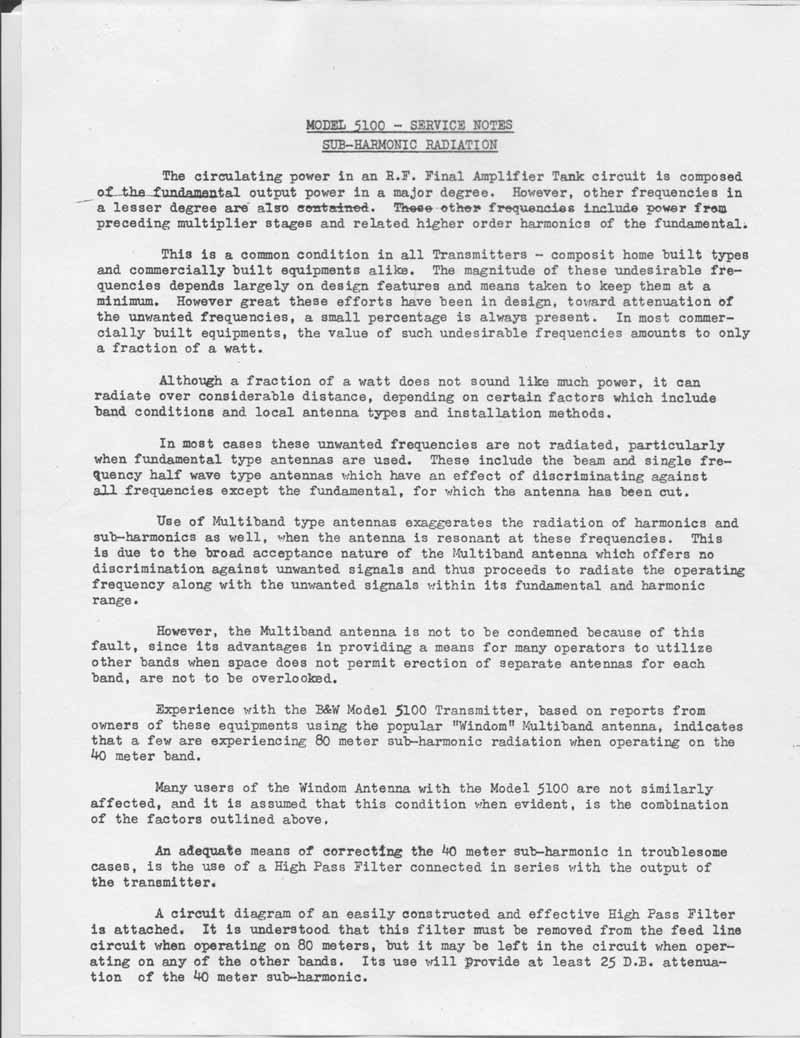

Service Notes to Reduce Sub-Harmonic Radiation

Page 1 | Page 2

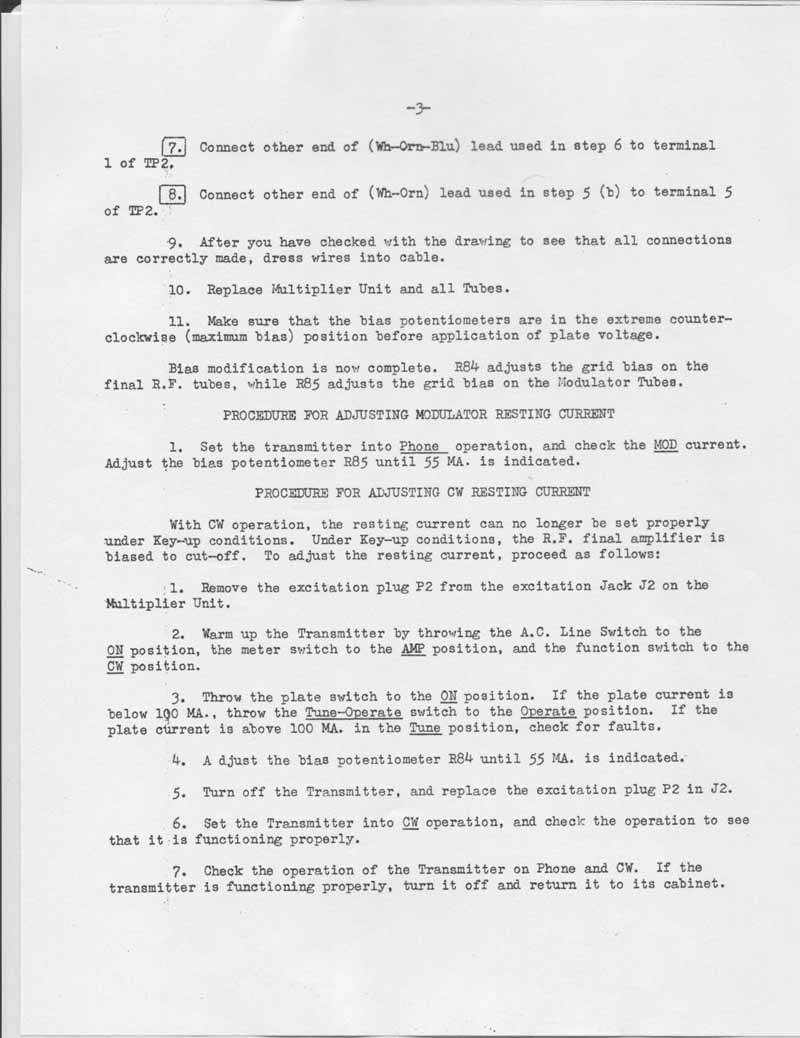

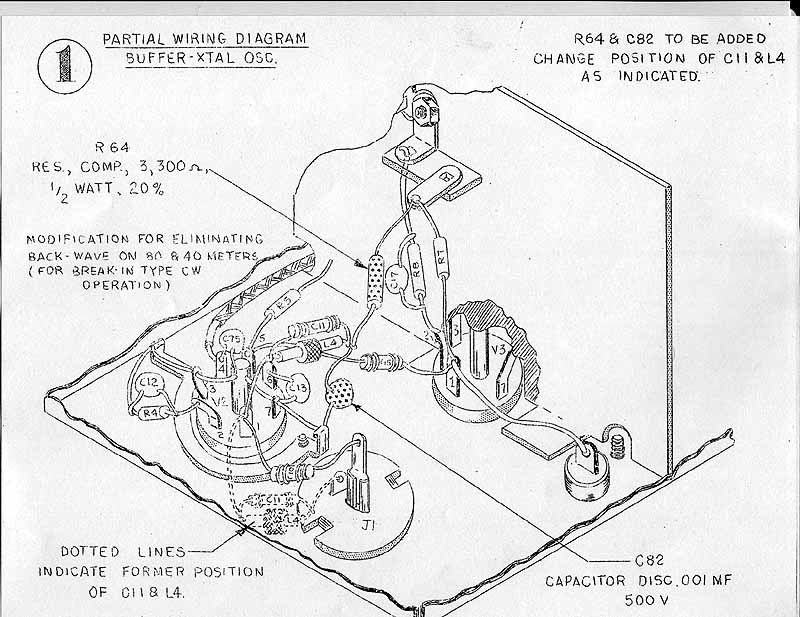

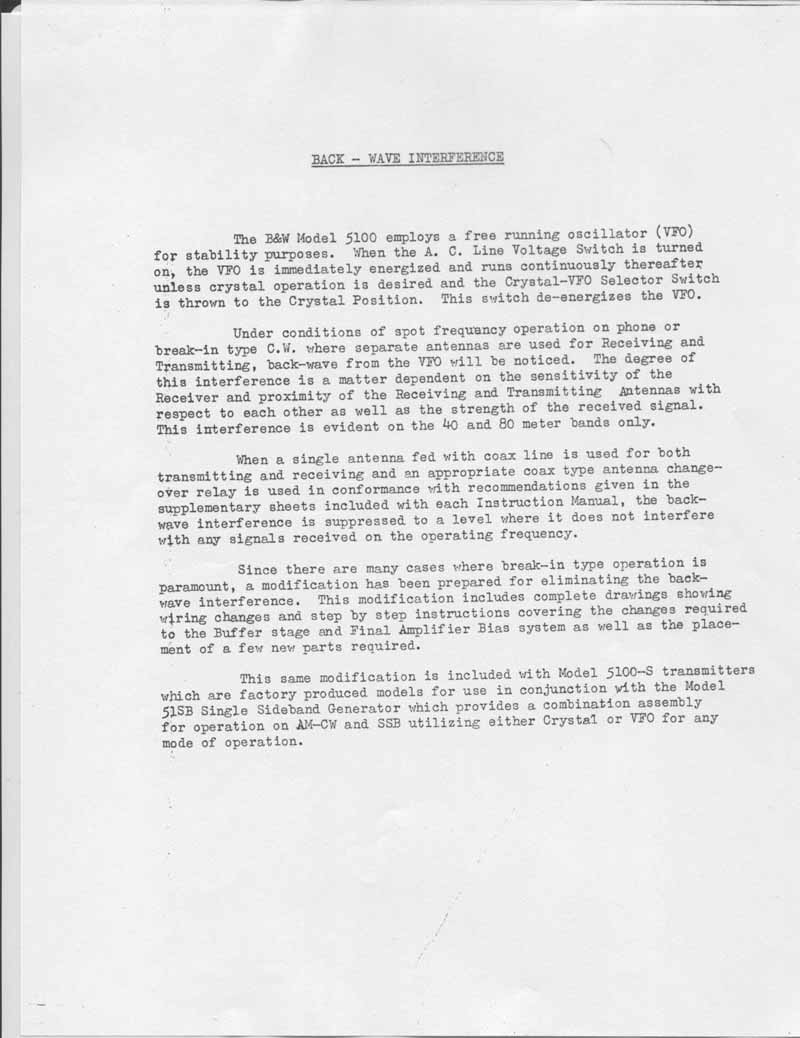

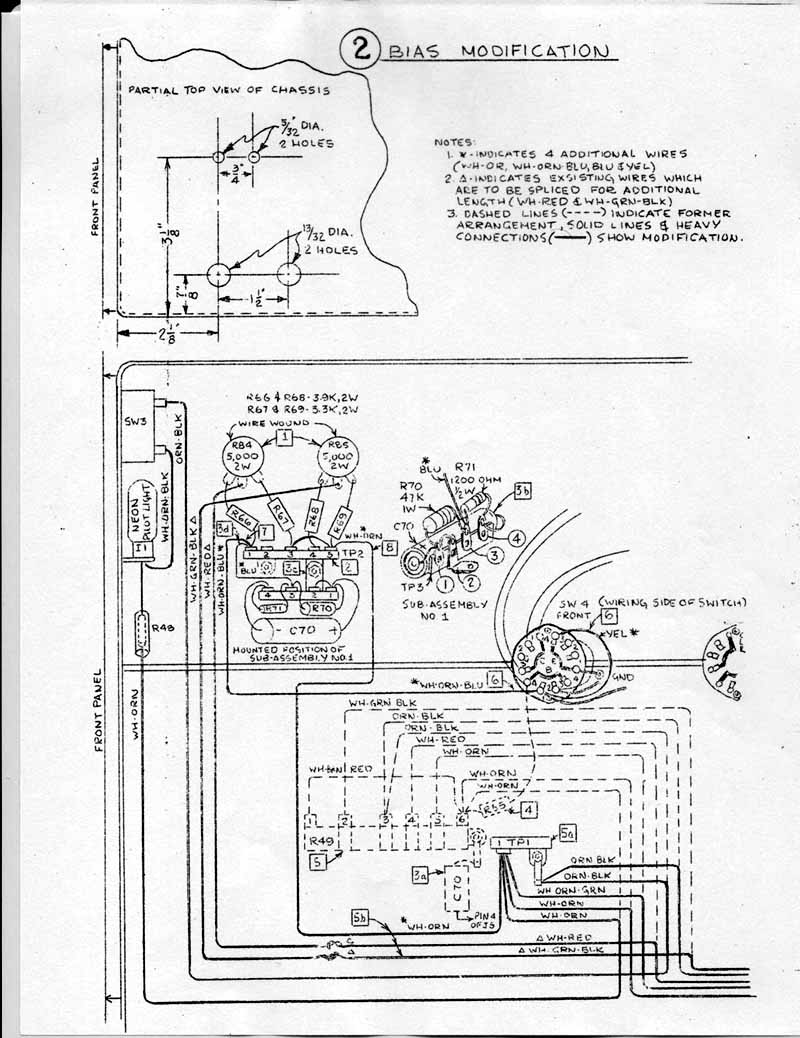

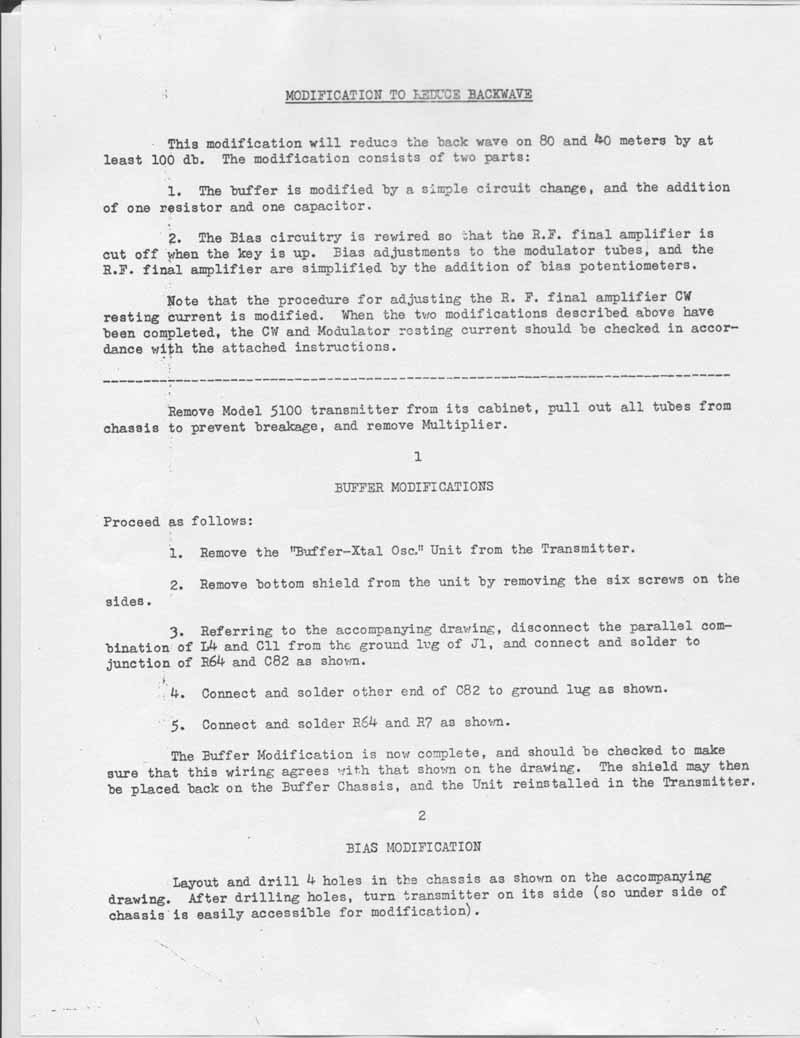

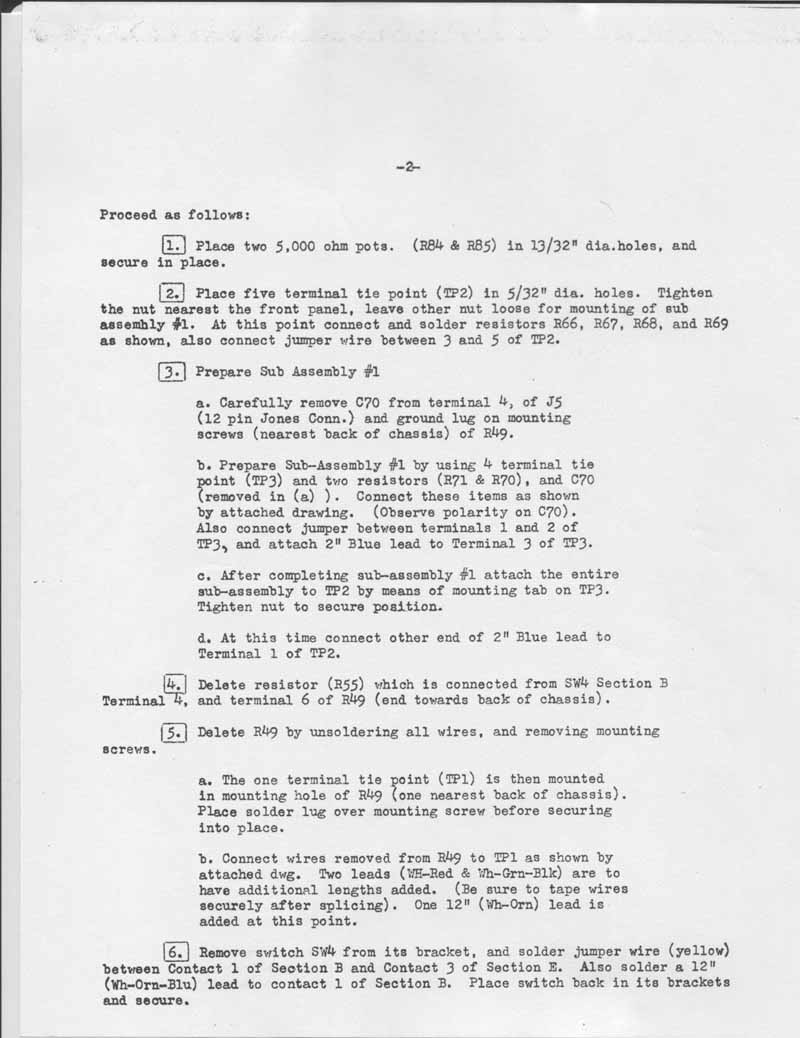

Service Notes for Bias Circuit Modifications (Removal of R49) and Back Wave Elimination

Page 1 | Page 2 | Page 3 | Page 4 | Page 5 | Page 6

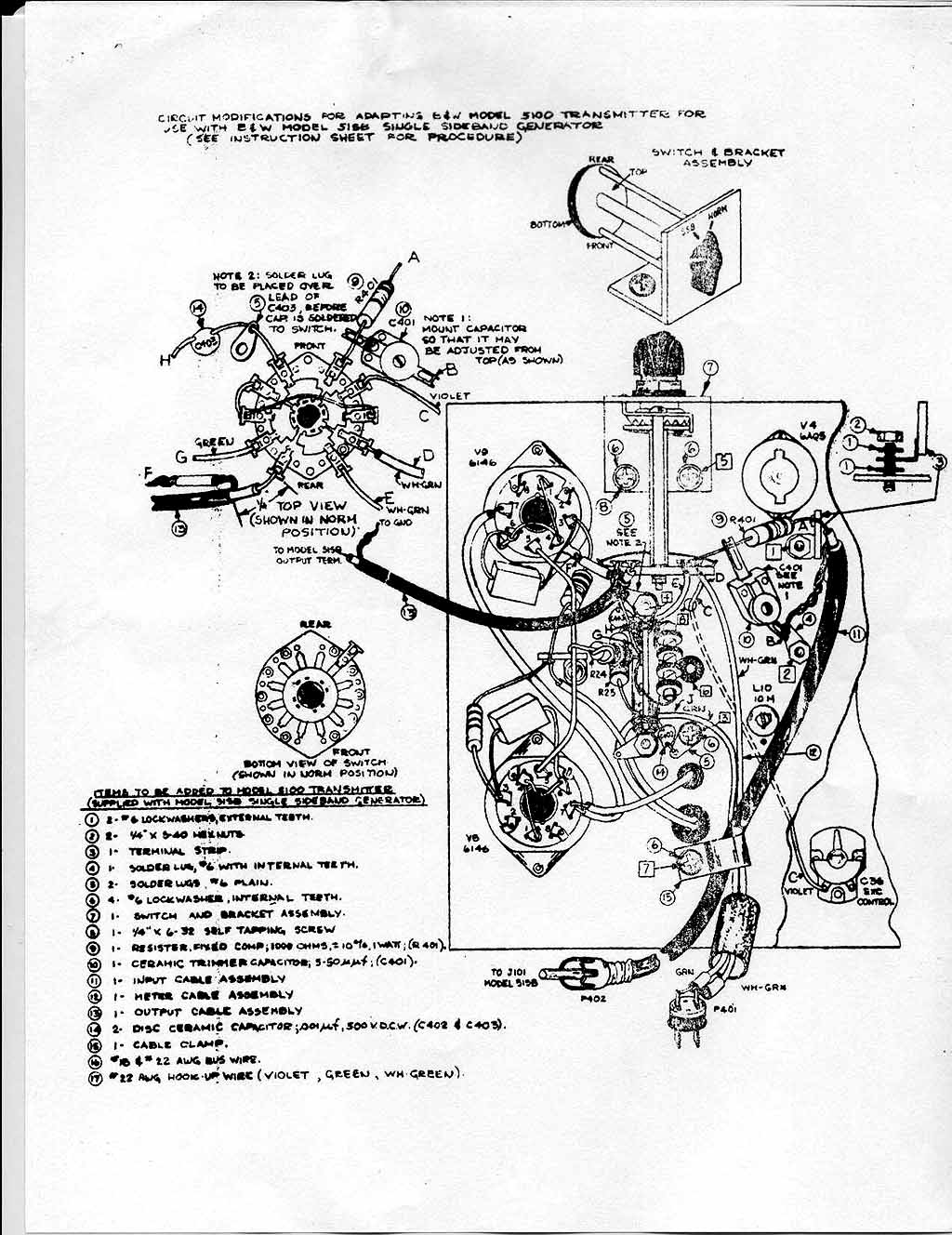

B&W 5100 Transmitter Circuit Changes

Schematics

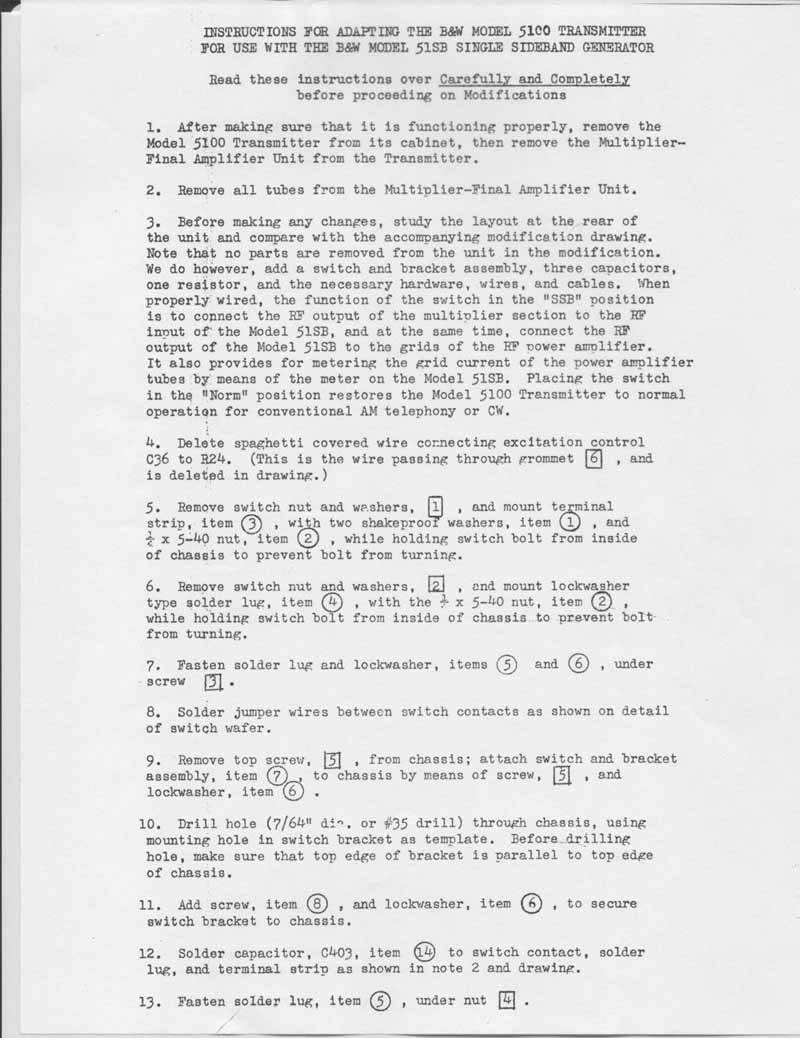

Adapting the B&W 5100 to work with the B&W 51SB SSB Generator

Page 1 | Page 2 | Page 3 | Page 4 | Page 5
