I was told this system was removed from a U.S. Navy JRB aircraft in the 1960s.... more info (and pictures) below! | |||||||||||||
| |||||||||||||

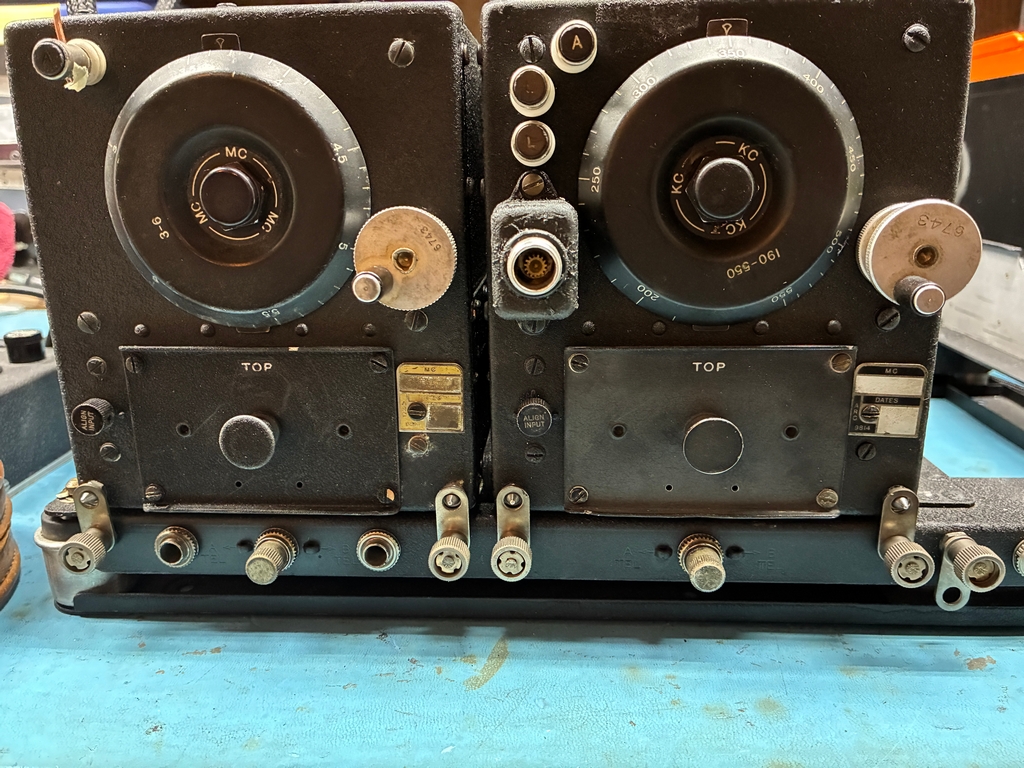

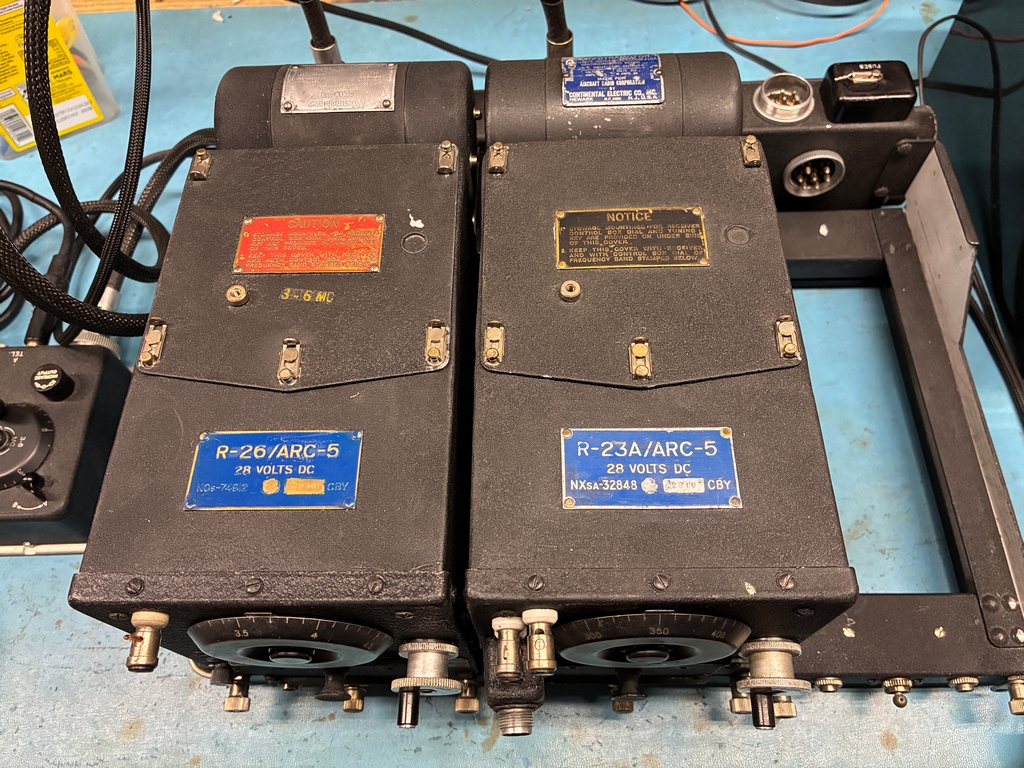

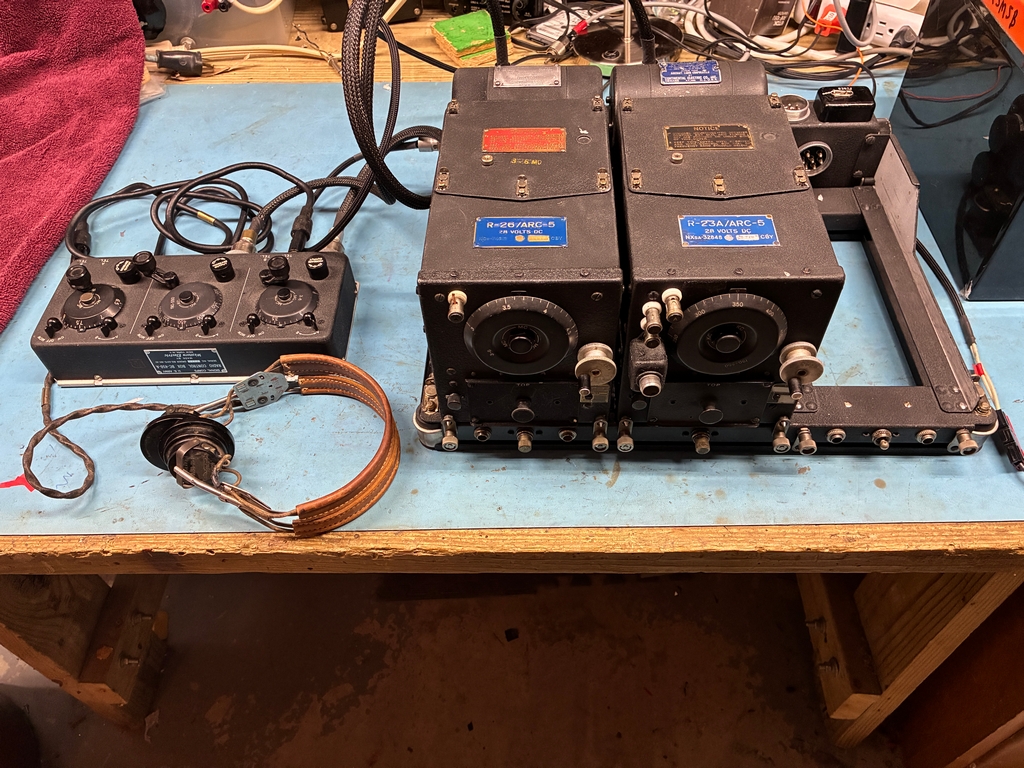

The R26 Communications receiver covers 3 to 6 Mc, while the R-23A Navigation receiver covers 0.19 to 0.55 Mc. | |||||||||||||
| |||||||||||||

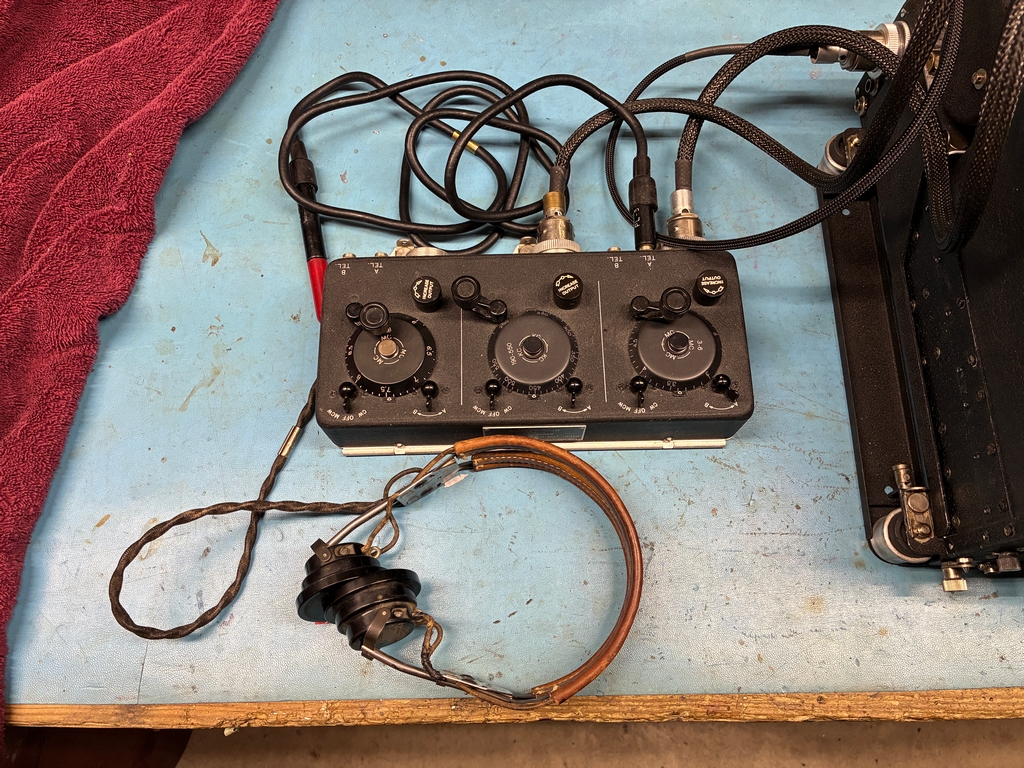

BC-450A Pilots Receiver Control Box and HS-33A Headset.
|

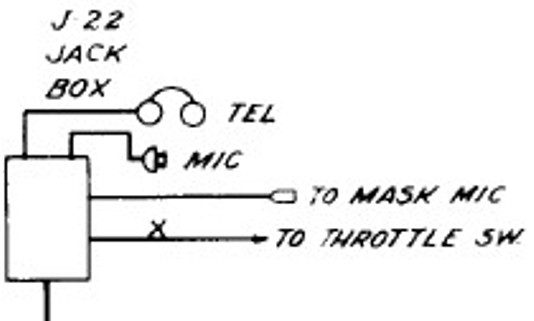

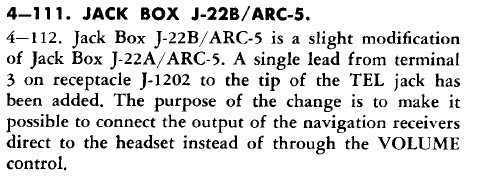

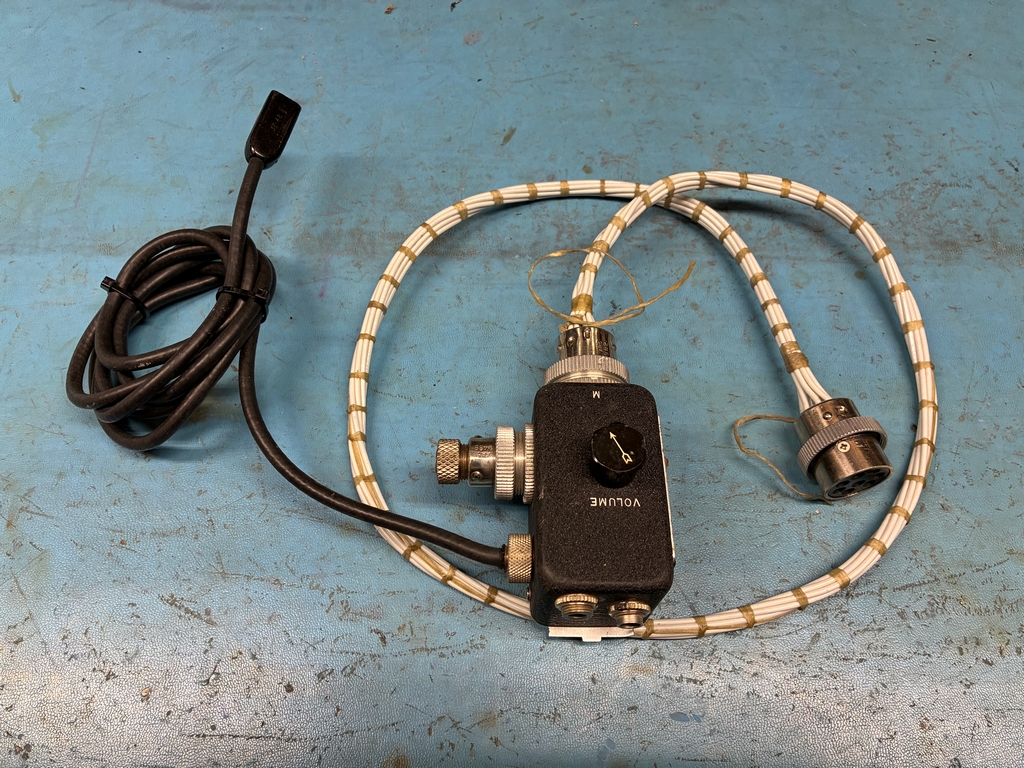

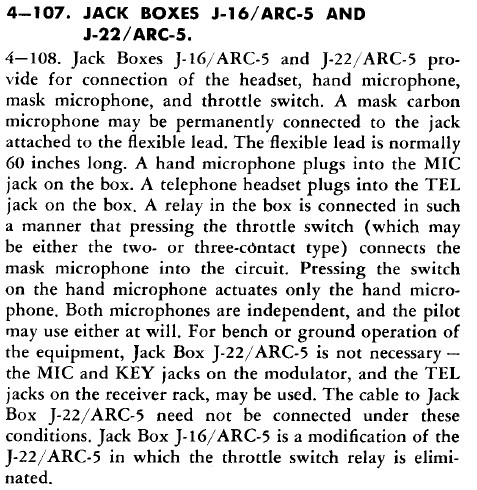

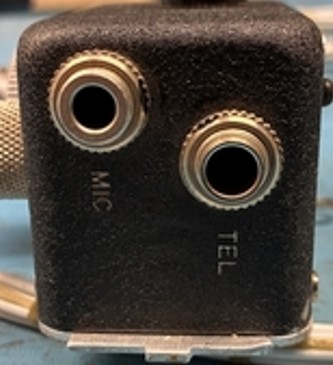

J-22B Jack Box. The usage of the Jack Box is best illustrated from excerpts from "Handbook Maintenance Instructions - AN/ARC-5 Aircraft Radio Equipment LF MF HF Components - AN 16-30ARC5-2'

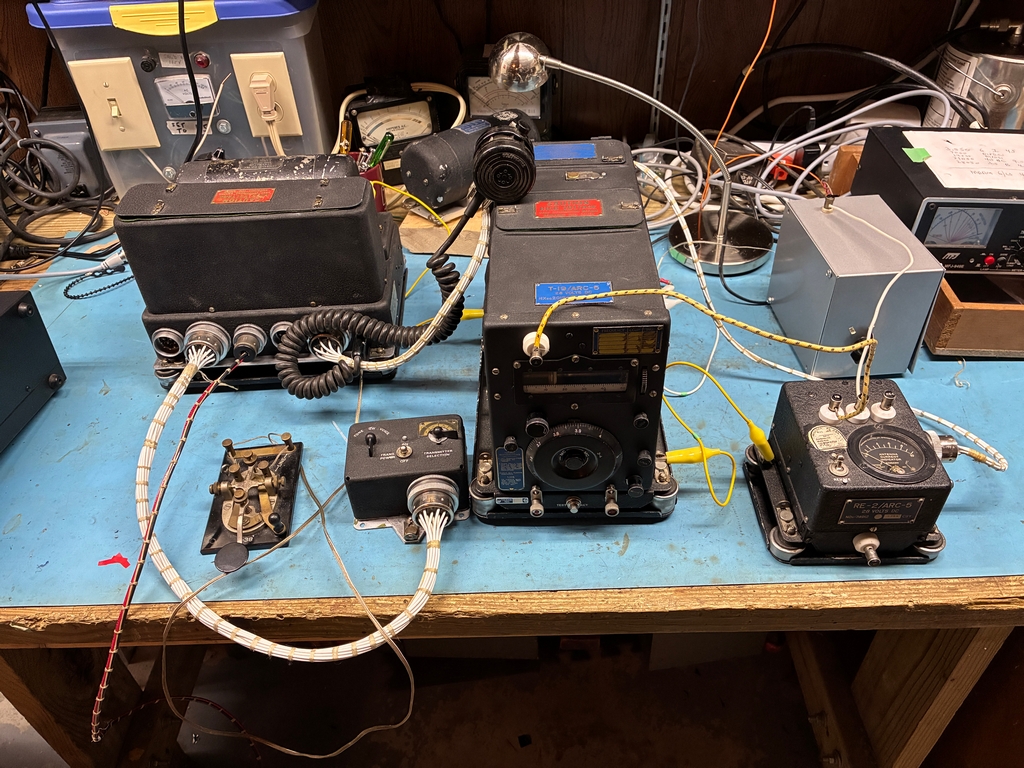

| The T19 transmitter up and running after a bit of repair work!
|
|

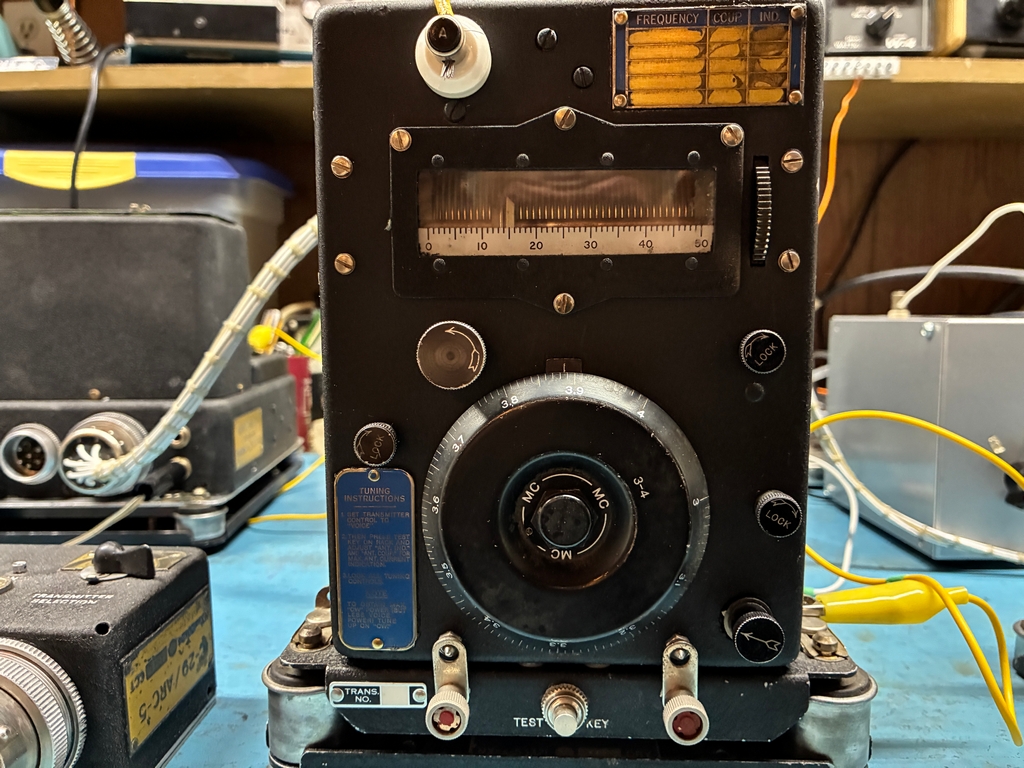

The T-19 Transmitter which covers 3 to 4 Mc.
|

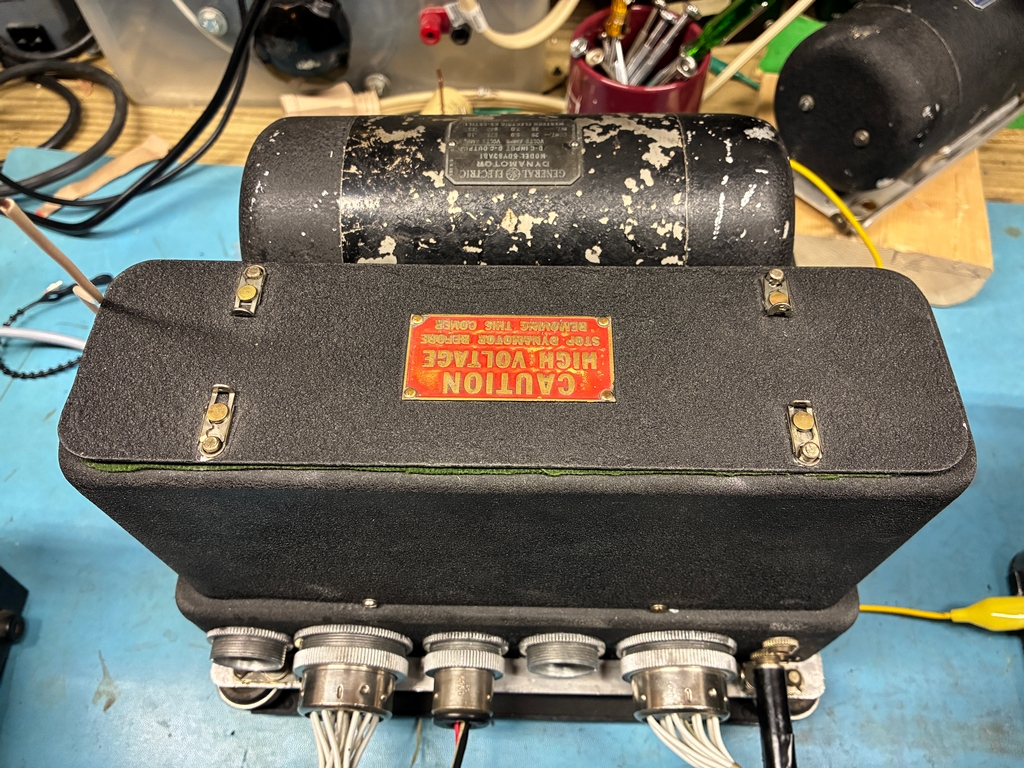

The MD-7 Modulator -- Plate Modulated AM!
|

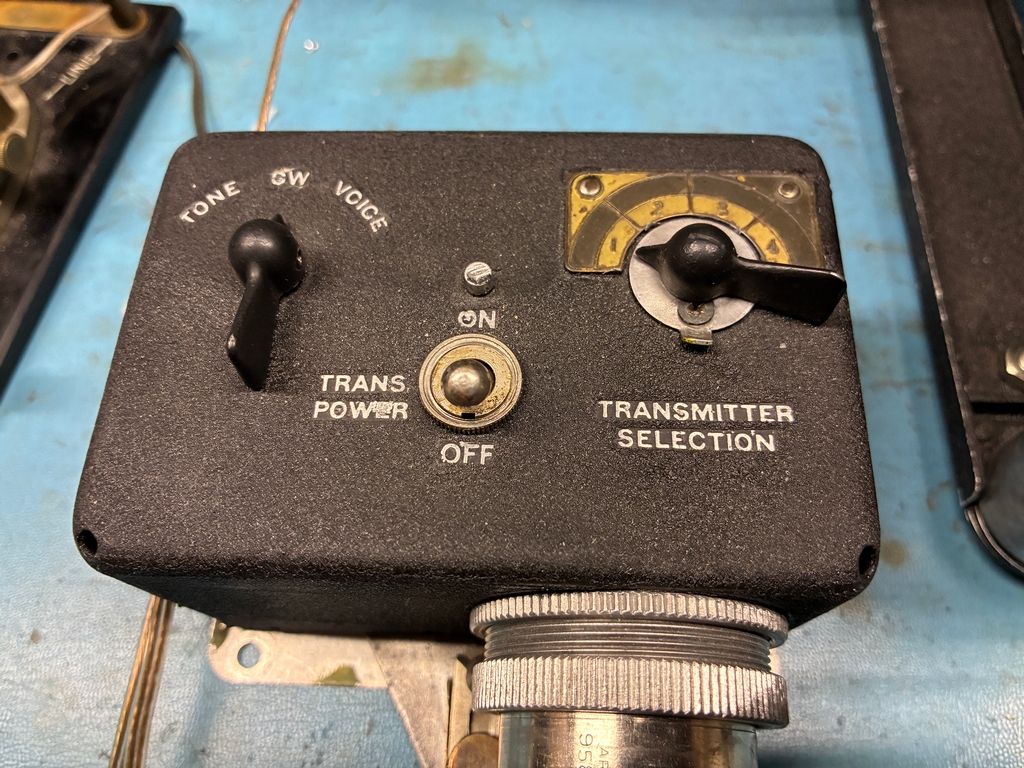

C-29 Pilots Transmitter Control Box.
|

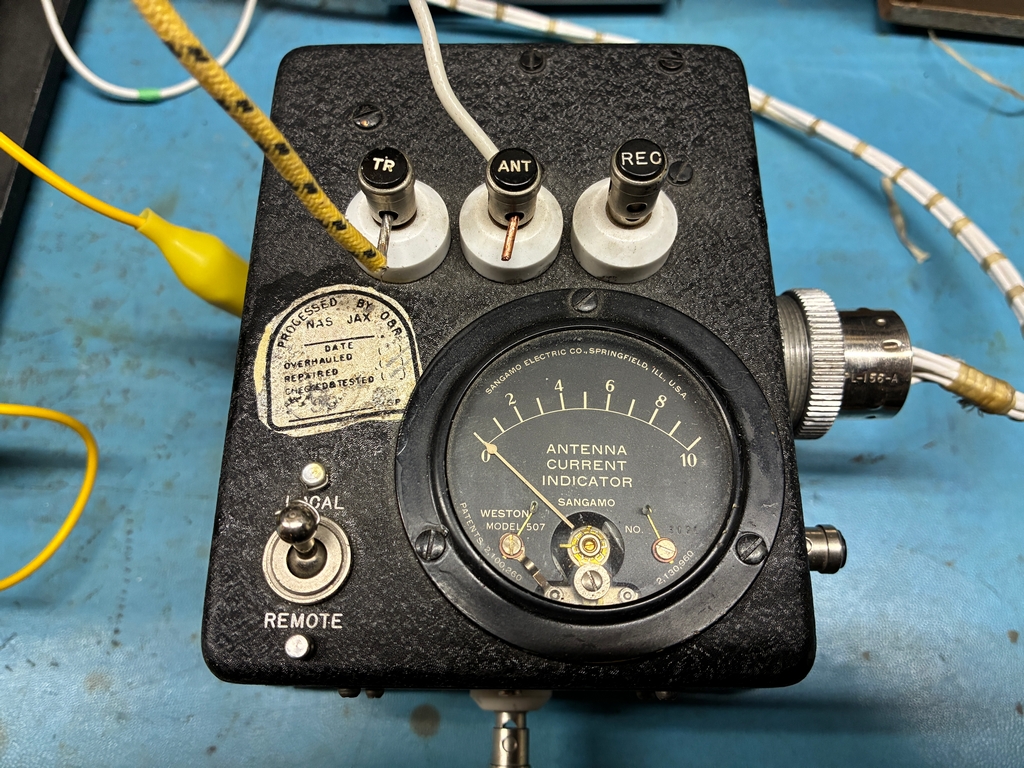

RE-2 Antenna Relay
|

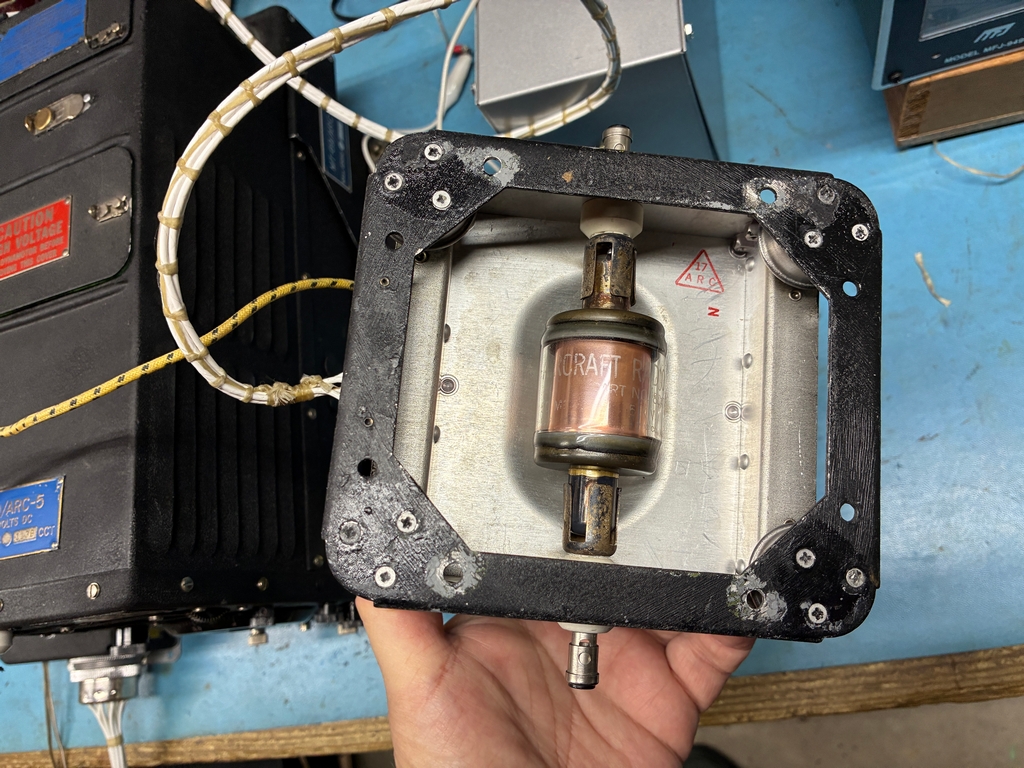

Series Capacitor under the RE-2.
|

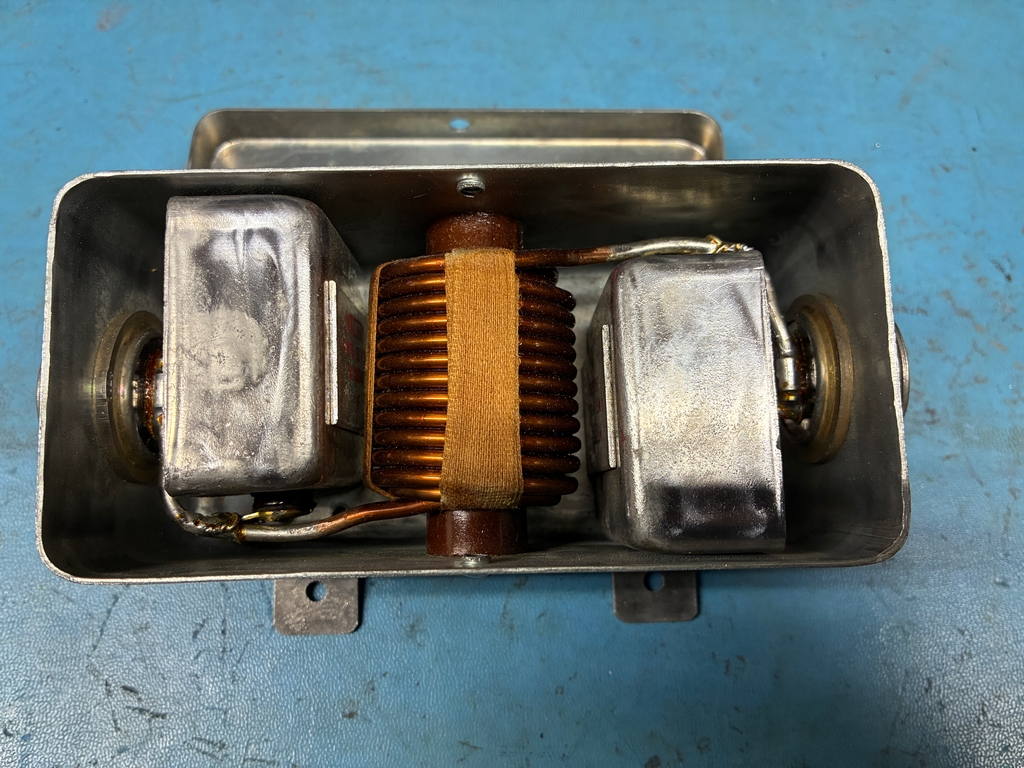

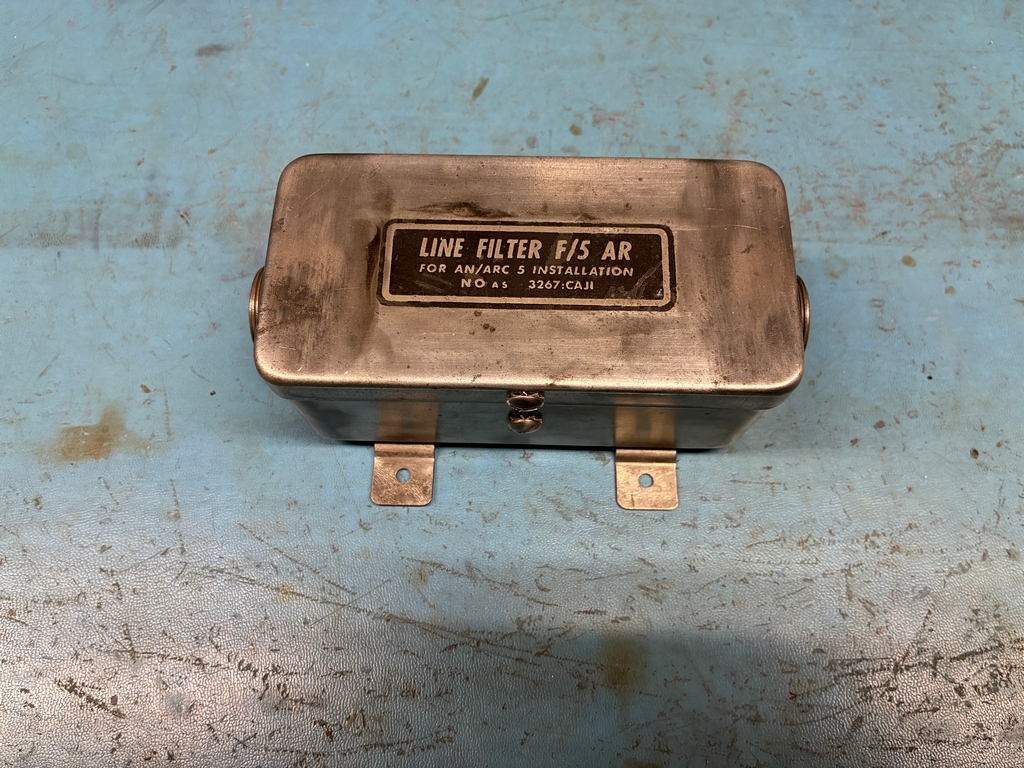

F/5 AR 28V Power Line Filter
|
|

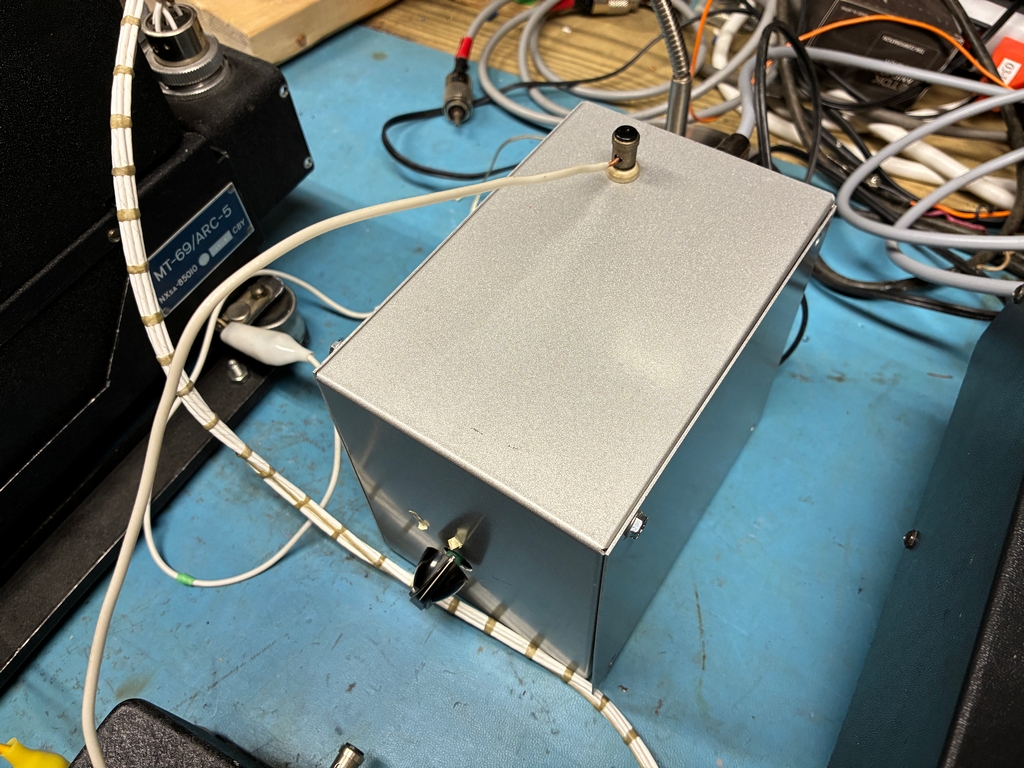

This is my Home-Brewed Tuner for Command Transmitters; it will tune a 40M or 80M Command Transmitter (12 ohms) to a nominal 50 ohms. It consists of an air variable capacitor in series with a 4:1 UNUN. The capacitor is from an HT-37 transmitter with several rotor plates removed. The input is at the top and the output SO-239 jack is on the back side.
|

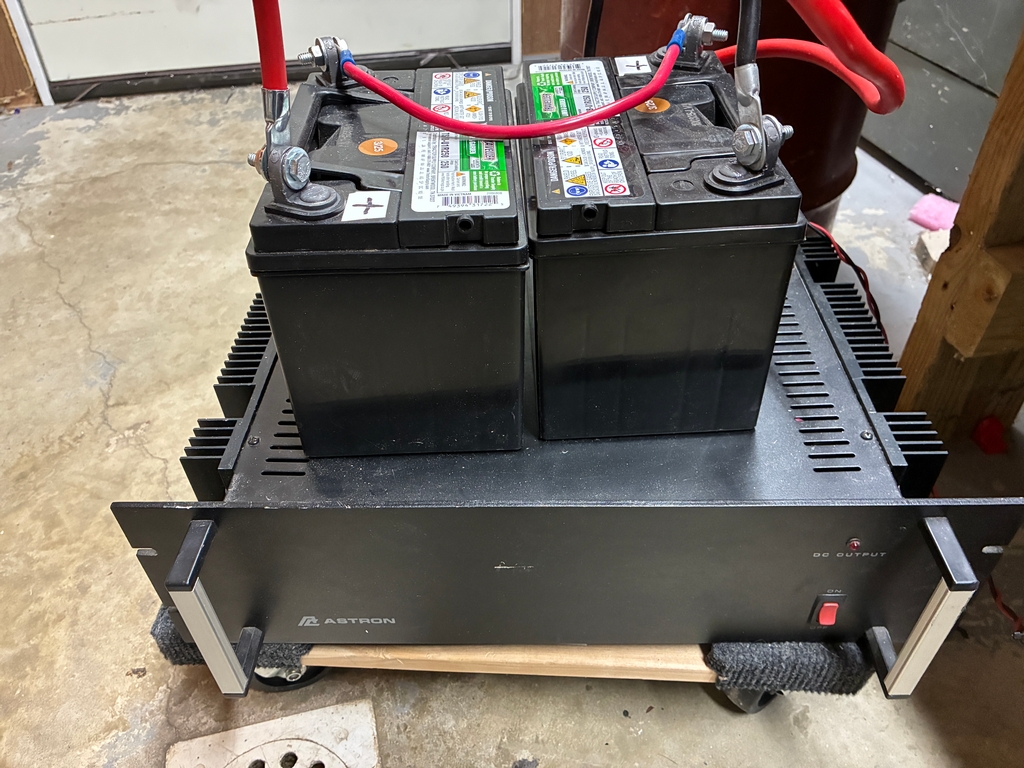

My AN/ARC-5 system, as well as my SCR-274N system, is powered by an 18A 28V Astron power supply (25A ICS) with a pair of tractor batteries in series across the output. Without the batteries, the startup current spike will trip the power supply. When I want to save my ears, I'll feed 550V from a Home-Brewed power supply, along with 28V, into the MD-7 instead of using the dynamotor. But dynamotors as just SO cool.....
Yes, that's a furniture mover the Astron and batteries are on....

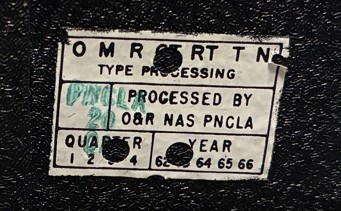

I was told this AN/ARC-5 system was removed from a USN SNB or JRB in the early 1960s. This type of aircraft was used as a trainer, transport, or general utility aircraft.
| Here are a few photos I took of N197L, a JRB-6, at the Breckenridge TX airshow on May 28, 1989.
|
