Hallicrafters HT-37 Under Chassis

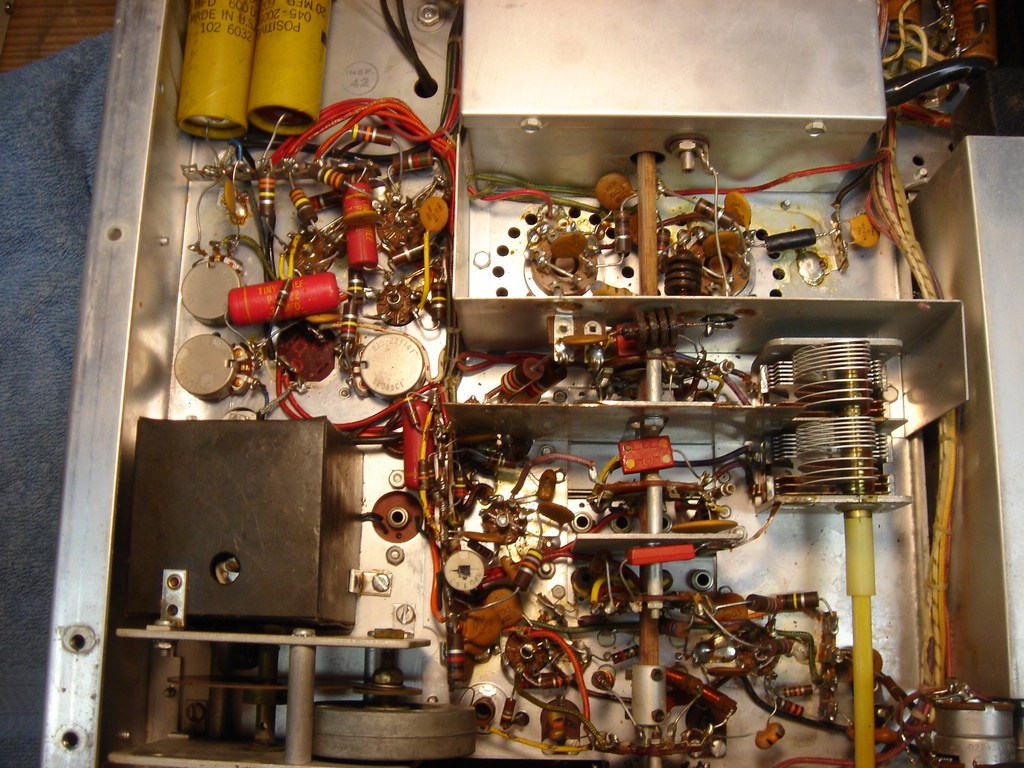

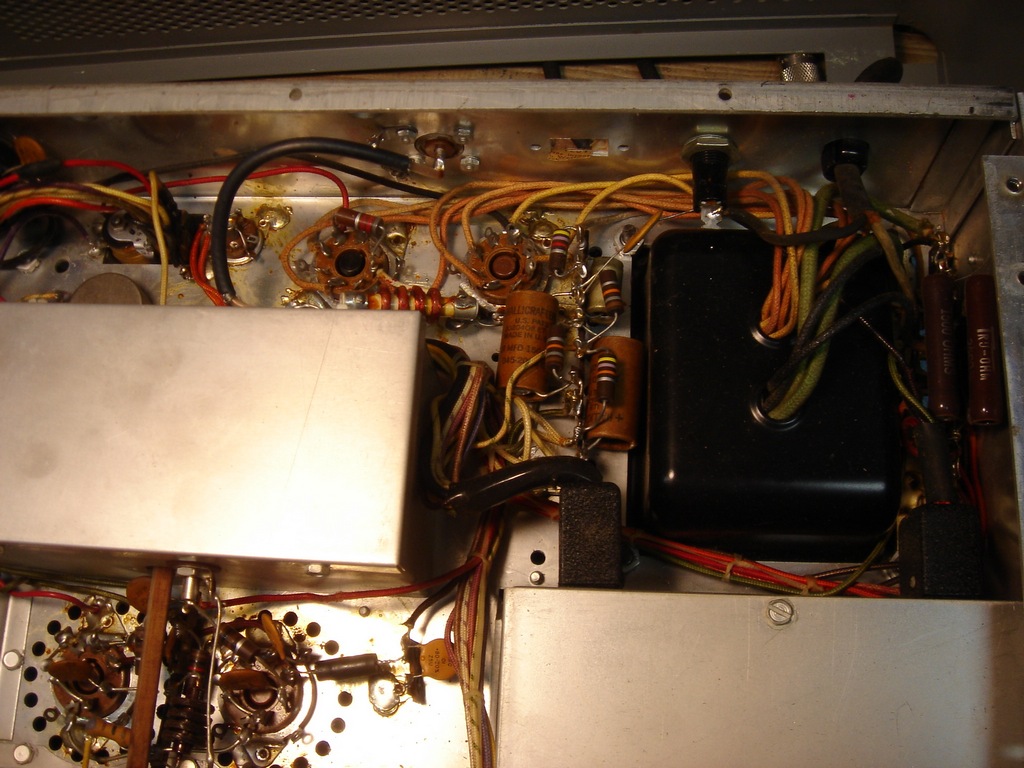

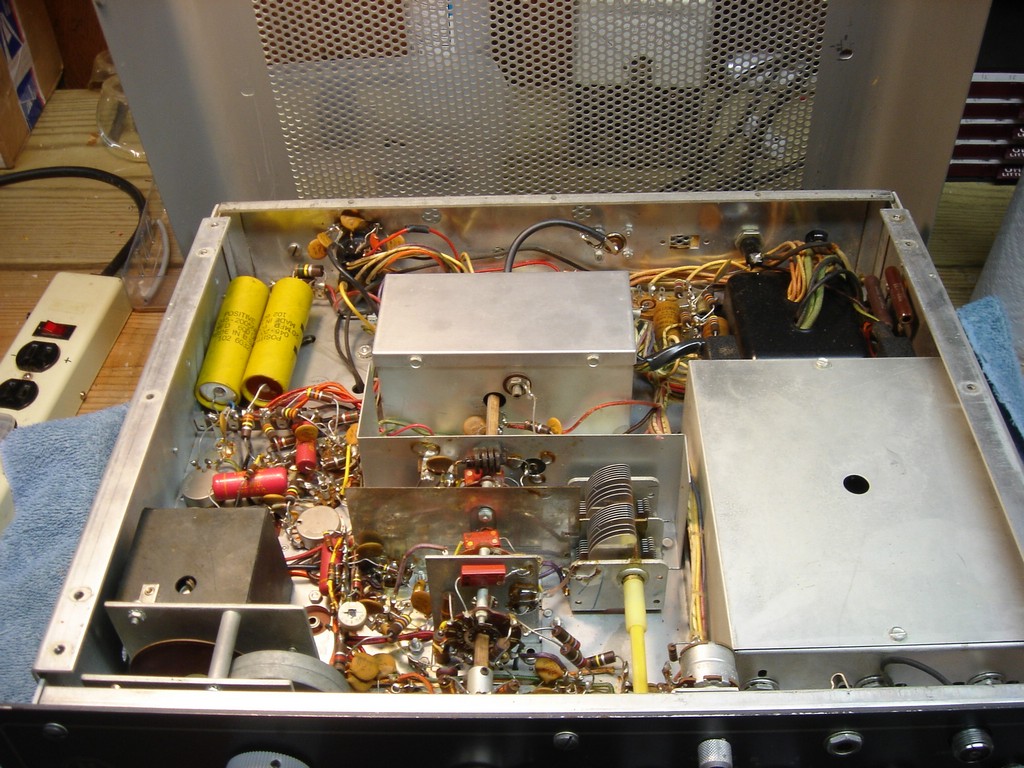

There are photos prior to recapping.

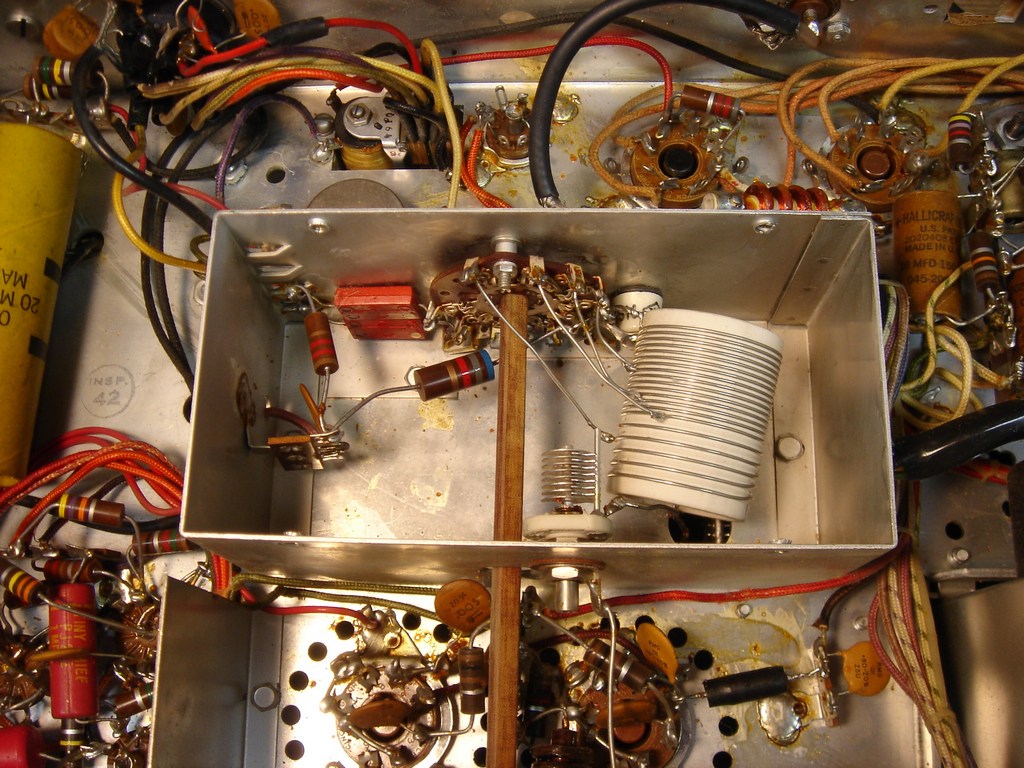

The far right image in the second row in the inside of the SSB Generator Subassembly.

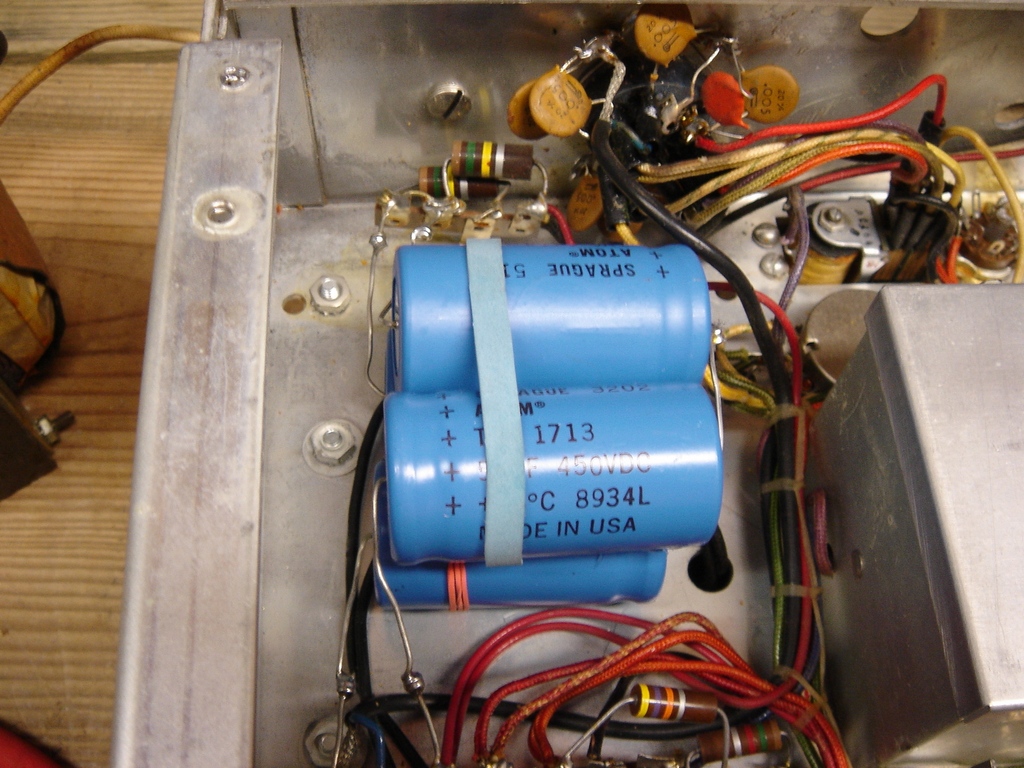

The two stage capacitor C79 in the Low Voltage circuit is specified to be 475V. I measured the actual key up/down voltages for C79A and C79B as 340/330 and 310/300 volts respectively.

Capacitors rated at 450V will work quite when recapping the radio (as 475V and 500V capacitors are considerably more expensive).

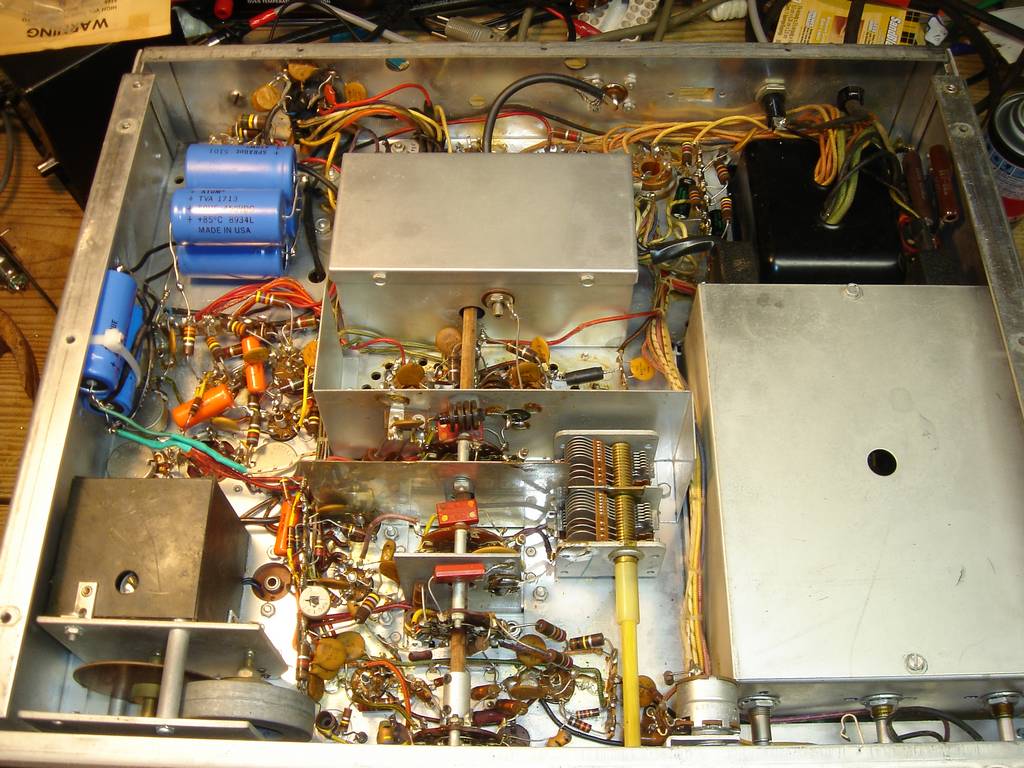

Recapping complete!
